MIT Mechatronics Research Lab · 2024

Perception Metrics for Safe Human–Robot Collaboration

role: Co-author
Stack: PythonOpenCVNumPyFFmpeg

Two new safety metrics, Critical and Average Collision Probability, turn a detector's missed detections, position error, and latency into a collision risk. Guided by them, an attentive processing strategy made YOLOv7 detectors 24–30% faster at nearly unchanged accuracy and cut collision probability by up to 13.5% on 243,000 benchmark frames.

Object detection benchmarks rank models by accuracy, and sometimes by frames per second, but rarely ask what either number means for safety. In human–robot collaboration they interact: a detector that is accurate but slow still reports where a hand was, not where it is now. Our ICRA 2024 paper models how three families of perception metrics, namely detection rate, detection quality, and latency, translate into the chance of a collision between a robot and a person.

The model follows two objects, such as a robot’s end effector and a person’s hand, as they move relative to each other in the camera frame. It defines when a collision occurs from their relative position and velocity, then accounts for missed detections, errors in the detected position, and processing delay. From this model, we derived two safety metrics: Critical Collision Probability (CCP) and Average Collision Probability (ACP).

To show that the metrics can guide algorithm design, we proposed an attentive processing strategy. Instead of running a large detector on the full frame, it crops the regions that matter, packs them into a smaller input, and processes that input with a network chosen from an ensemble.

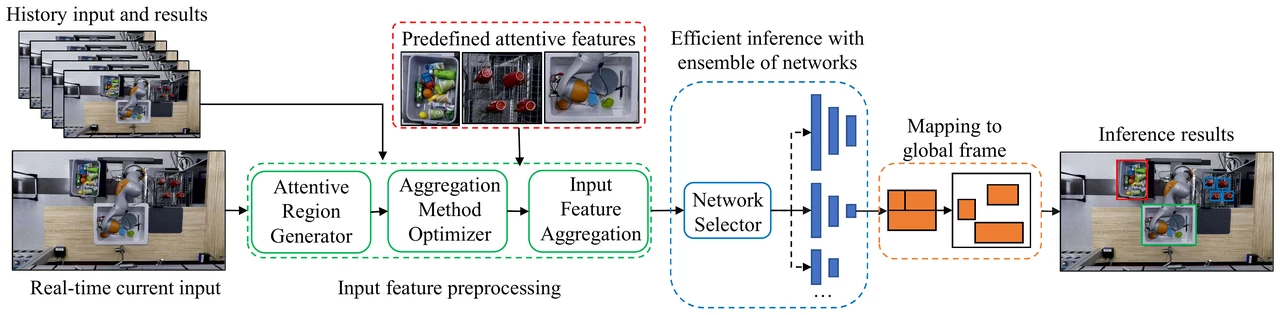

Pipeline diagram: history inputs and the current frame feed an attentive region generator, aggregation optimizer, and input feature aggregation; a network selector chooses from an ensemble of networks, and results are mapped back to the global frame. — The attentive processing strategy. Relevant regions of the current frame are cropped and aggregated into a smaller input, processed by a network chosen from an ensemble, and mapped back to the full frame.

I joined the project as an undergraduate researcher through MIT’s UROP program. I searched for and prepared the evaluation data, and I produced the results section of the demonstration video at the top of this page.

We evaluated the strategy on 79 videos from the LaSOT tracking benchmark, about 243,000 frames, with three YOLOv7 models of increasing size. It reduced inference time by 24–30% and total time per frame by 19–27%, while accuracy measures changed by about 1.5% or less. Those savings carried through to safety: CCP fell by 6.5–11.3% and ACP by 7.3–13.5%, with the largest gains on the largest model.

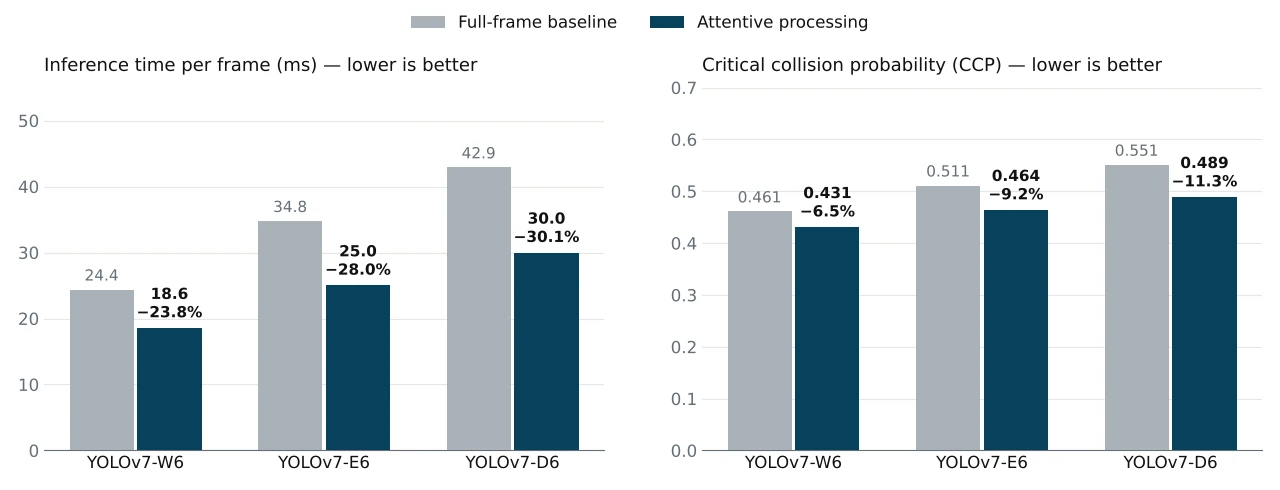

Two grouped bar charts comparing the full-frame baseline (gray) and attentive processing (navy) for YOLOv7-W6, E6, and D6. Inference time drops from 24.4, 34.8, and 42.9 ms to 18.6, 25.0, and 30.0 ms. Critical collision probability drops from 0.461, 0.511, and 0.551 to 0.431, 0.464, and 0.489. — Inference time and critical collision probability for three YOLOv7 models, with and without attentive processing (lower is better for both). The largest model, D6, is the most accurate on the benchmark but also the slowest, which gives it the highest collision probability until attentive processing narrows the gap.

That largest model was the most accurate on the benchmark, yet its slow processing made it the most dangerous for collaboration, a clear case of why speed–accuracy tradeoffs belong in safety analysis. The results come from offline evaluation on a single-object tracking benchmark rather than a closed-loop robot. Most of the remaining accuracy loss came from the smaller networks in the ensemble, which we expect fine-tuning on cropped inputs to recover.
